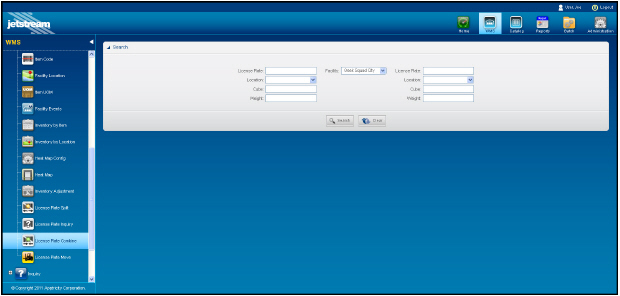

License Plate Combine Screen
You use this screen to combine license plates. To access this screen:
1. Click the Inventory Control icon in the left navigation pane.
The Inventory Control menu is displayed.
2. Click the License Plate Combine icon in the Inventory Control menu.
The License Plate Combine screen is displayed.
TIP: Field names in bold text indicate required fields.
The following table defines the components on the License Plate Combination screen.
|
Component |
Description |
|---|---|
|
Search Pane |
|
|
License Plate field |
Allows you to search by the first license plate number. |
|
Location list |
Allows you to search by the first license plate location. |
|
Cube field |
Allows you to search by the first license plate cube. |
|
Weight field |
Allows you to search by the first license plate weight. |
|
Facility list |
Allows you to select the facility to search. |
|
License Plate field |
Allows you to search by the second license plate number. |
|
Location field |
Allows you to search by the second license plate location. |
|
Cube field |
Allows you to search by the second license plate cube. |
|
Weight field |
Allows you to search by the second license plate weight. |

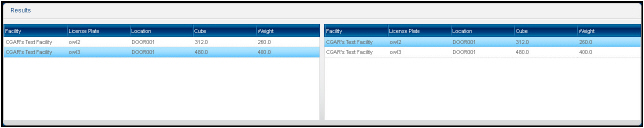

License Plate Combine Search Results Pane
This pane displays the results that match the criteria you entered in the Search pane fields.
TIP: Field names in bold text indicate required fields.
The following table defines the components on the License Plate Combination Search Results pane.
|
Component |
Description |
|---|---|
|
Search Results Pane |
|
|
Facility column |
Displays the name of the facility where the first license plate is located. |
|
License Plate column |
Displays the first license plate number. |
|
Location column |
Displays the first license plate location in the facility. |
|
Cube column |
Displays the volume of the first license plate. |
|
Weight column |
Displays the weight of the first license plate. |
|
Facility column |
Displays the name of the facility where the second license plate is located. |
|
License Plate column |
Displays the second license plate number. |
|
Location column |
Displays the second license plate location in the facility. |
|
Cube column |
Displays the volume of the second license plate. |
|
Weight column |
Displays the weight of the second license plate. |

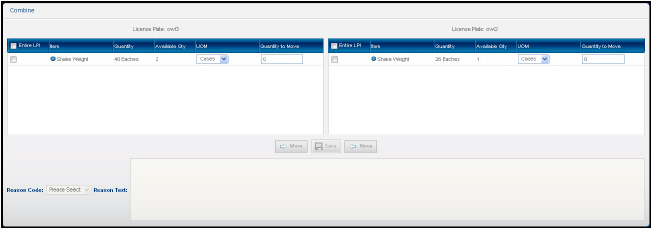

License Plate Combine Pane
This pane allows you to combine the license plates you selected.
TIP: Field names in bold text indicate required fields.
The following table defines the components on the License Plate Combine pane.
|
Component |
Description |
|---|---|
|
Combine Pane - License Plate 1 |
|
|
Entire LPI box |
Allows you to combine all of one license plate with another. |
|
Item column |
Displays the name of the item on the license plate. |
|
Quantity column |
Displays the quantity available on the first license plate. |
|
Available Quantity column |
Displays the quantity available to combine. |
|
UOM column |
Displays the unit of measure for the item. |
|
Quantity to Move column |
Displays the number of items available to combine. |
|
Combine Pane - License Plate 2 |
|
|
Entire LPI box |
Allows you to combine all of one license plate with another. |
|
Item column |
Displays the name of the item on the license plate. |
|
Quantity column |
Displays the quantity available on the first license plate. |
|
Available Quantity column |
Displays the quantity available to combine. |
|
UOM column |
Displays the unit of measure for the item. |
|
Quantity to Move column |
Displays the number of items available to combine. |
|
Move (right) button |
Allows you to combine the license plate on the left with the one on the right. |
|
Save button |
Allows you to save the combined license plate. |
|
Move (left) button |
Allows you to combine the license plate on the right with the one on the left. |
|
Reason Code list |
Allows you to select a reason for the move. |
|
Reason Text field |
Allows you to enter a reason for the combine. |
