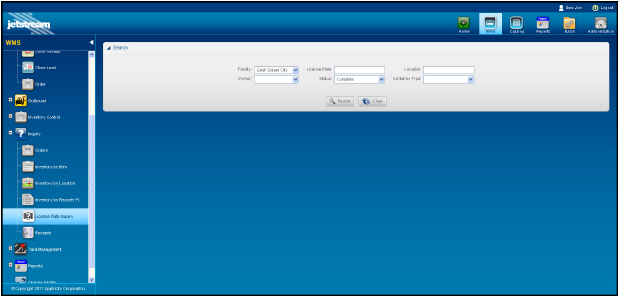

License Plate Inquiry Screen
Use this screen to search inventory by the license plate number. To access this screen:
1. Click the Inquiry icon in the left navigation pane.
The Inquiry menu is displayed.
2. Click the License Plate Inquiry icon in the Inquiry menu.
The License Plate Inquiry screen is displayed.
The following table defines the components on the License Plate Inquiry screen.
|
Component |
Description |
|---|---|
|
Search Pane |
|
|
Facility list |
Allows you to search by your facility name. |
|
License Plate field |
Allows you to search by the License Plate number. |
|
Location field |
Allows you to select by the location. |
|
Owner list |
Allows you to search by the owner name. |
|
Status list |
Allows you to search by the status. |
|
Container Type list |
Allows you to search by the type of container where the License Plate is attached. |
|
Search button |
Searches for the license plates matching the criteria you entered in the Search fields. |
|
Clear button |
Clears the data from the Search pane and Search Results pane. |
License Plate Inquiry Search Results Pane
This pane displays the results that match the criteria you entered in the Search pane fields.
The following table defines the components on the License Plate Inquiry Search Results pane.
|
Component |
Description |
|---|---|
|
Search Results Pane |
|
|
Facility column |
Displays the name of the facility. |
|
License Plate column |
Displays the License Plate number. |
|
Location column |
Displays the location of the items with the License Plate number. |
|
Status column |
Displays the status of the item. |
|
Container Type column |
Displays the type of container the License Plate is associated with. |
|
Owner column |
Displays the name of the owner. |
|
Weight column |
Displays the weight of the item. |
|
Cube column |
Displays the cubic volume of the item. |

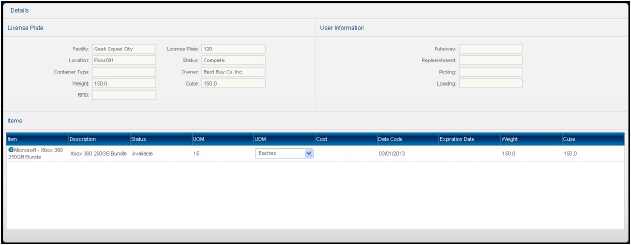

License Plate Inquiry Details Pane
This pane displays the details for the License Plate you selected from the Search Results pane.
The following table defines the components on the License Plate Inquiry Details pane.
|
Component |
Description |
|---|---|
|
Details Pane |
|
|
Facility field |
Displays the name of the facility. |
|
License Plate field |
Displays the License Plate number. |
|
Location field |
Displays the location of the License Plate. |
|
Status field |
Displays the status. |
|
Container Type field |
Displays the type of container for the License Plate. |
|
Owner field |
Displays the name of the owner. |
|
Weight field |
Displays the weight. |
|
Cube field |
Displays the cubic volume. |
|
RFID field |
Displays the radio-frequency tag number for the License Plate. |
|
User Information Pane |
|
|
Putaway field |
Displays the name of the user responsible for the putaway location. |
|
Replenishment field |
Displays the name of the user responsible for replenishment. |
|
Picking field |
Displays the name of the user responsible for picking. |
|
Loading field |
Displays the name of the person responsible for loading. |
|
Items Pane |
|
|
Item column |
Displays the name of the item. |
|
Description column |
Displays the short description for the item. |
|
Status column |
Displays the status for the item. |
|
Quantity column |
Displays the quantity of the item. |
|
UOM column |
Displays the unit of measure for the item. |
|
Cost column |
Displays the cost of the item. |
|
Date Code column |
Displays the date code for the item. |
|
Expiration Date column |
Displays the date the item expires. |
|
Weight column |
Displays the weight of the item. |
|
Cube column |
Displays the cubic volume of the item. |
