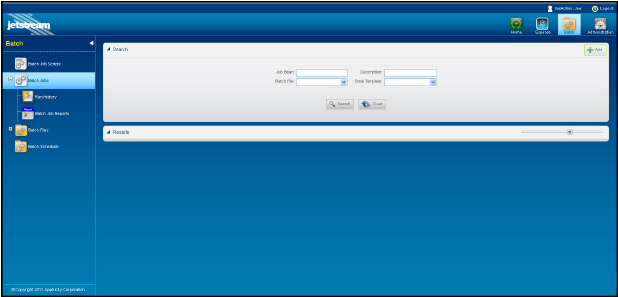

Batch Jobs Screen
Use this screen to enter the code for the batch job. To access this screen:
1. Click the Batch icon in the upper navigation pane. The Batch menu is displayed.
2. Click the Batch Jobs icon in the Batch menu. The Batch Jobs screen is displayed.
The following table defines the components on the Batch Jobs screen.
|
Component |
Description |
|---|---|
|
Search Pane |
|
|
Add button |
Displays the Edit pane. |
|
Job Bean field |
Allows you to search by code in the batch job. |
|
Description field |
Allows you to search by the job description. |
|
Batch File list |
Allows you to search by the batch file name. |
|
Email Template list |
Allows you to search by the email template used. |
|
Search button |
Searches for the batch job based on the criteria you entered in the search fields. |
|
Clear button |
Removes the data you entered in the search fields and the matching results from the Results pane. |

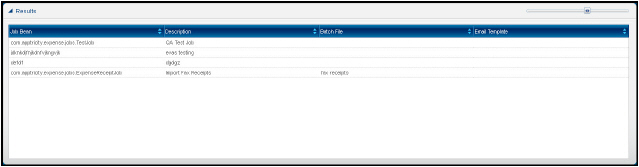

Batch Job Search Results Pane
This pane displays the results that match the criteria you entered in the Search pane fields.
The following table defines the components on the Batch Jobs Search Results pane.
|
Component |
Description |
|---|---|
|
Search Results Pane |
|
|
Job Bean column |
Displays the batch job code. |
|
Description column |
Displays a description of the batch job. |
|
Batch File column |
Displays the name of the batch job. |
|
Email Template column |
Displays the name of the email template used |

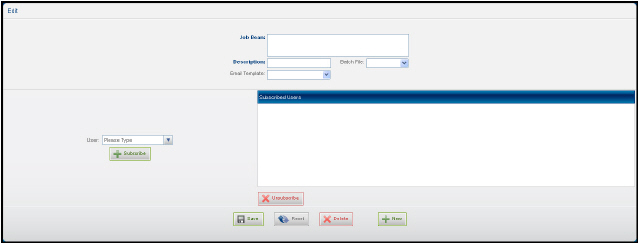

Batch Job Edit Pane
This pane allows you to add, edit, and delete batch jobs. You can also add and delete users who will receive the batch job results emails.
The following table defines the components on the Batch Jobs Edit pane.
|
Component |
Description |
|---|---|
|
Edit Pane |
|
|
Job Bean field |
Allows you to enter the code for the batch job. |
|
Description field |
Allows you to enter a description for the job. |
|
Batch File list |
Allows you to select the batch file to run. |
|
Email Template list |
Allows you to select the email template to use to send the results. |
|
User list |
Allows you to select the users to receive the batch job results. |
|
Subscribe button |
Adds the user to the subscription list. |
|
Subscribed Users field |
Displays the names of the users receiving the batch job results. |
|
Unsubscribe button |
Removes a user from the subscription list. |
|
Save button |
Saves the batch job and subscription list. |
|
Reset button |
Removes your changes and reverts to the original record. |
|
Delete button |
Deletes the batch job. |
|
New button |
Clears the Edit pane and allows you to add a new batch job. |
